120kW Dual Gun

Q: What connector type does the 120 kW DC charger use?

It uses dual CCS-2 connectors, compatible with most EVs sold in India.

Q: What current does the 120 kW charger deliver?

Up to 250 A per gun, over an ultra-wide 100-1000 Vdc output range - built for highway and fuel-station throughput.

Q: Does the 120 kW DC charger support OCPP?

Yes, it supports OCPP 1.6J and OCPP 2.0.1 for seamless backend integration.

Q: Can the 120 kW DC charger be installed outdoors?

Yes, it is IP55 rated for outdoor installation at highways, fuel stations and large fleet sites.

Built for high-throughput commercial charging - highways, fuel stations and large fleet operations.

DC Fast Charger · 120 kW · Dual Gun

Request a Quote Download Brochure →

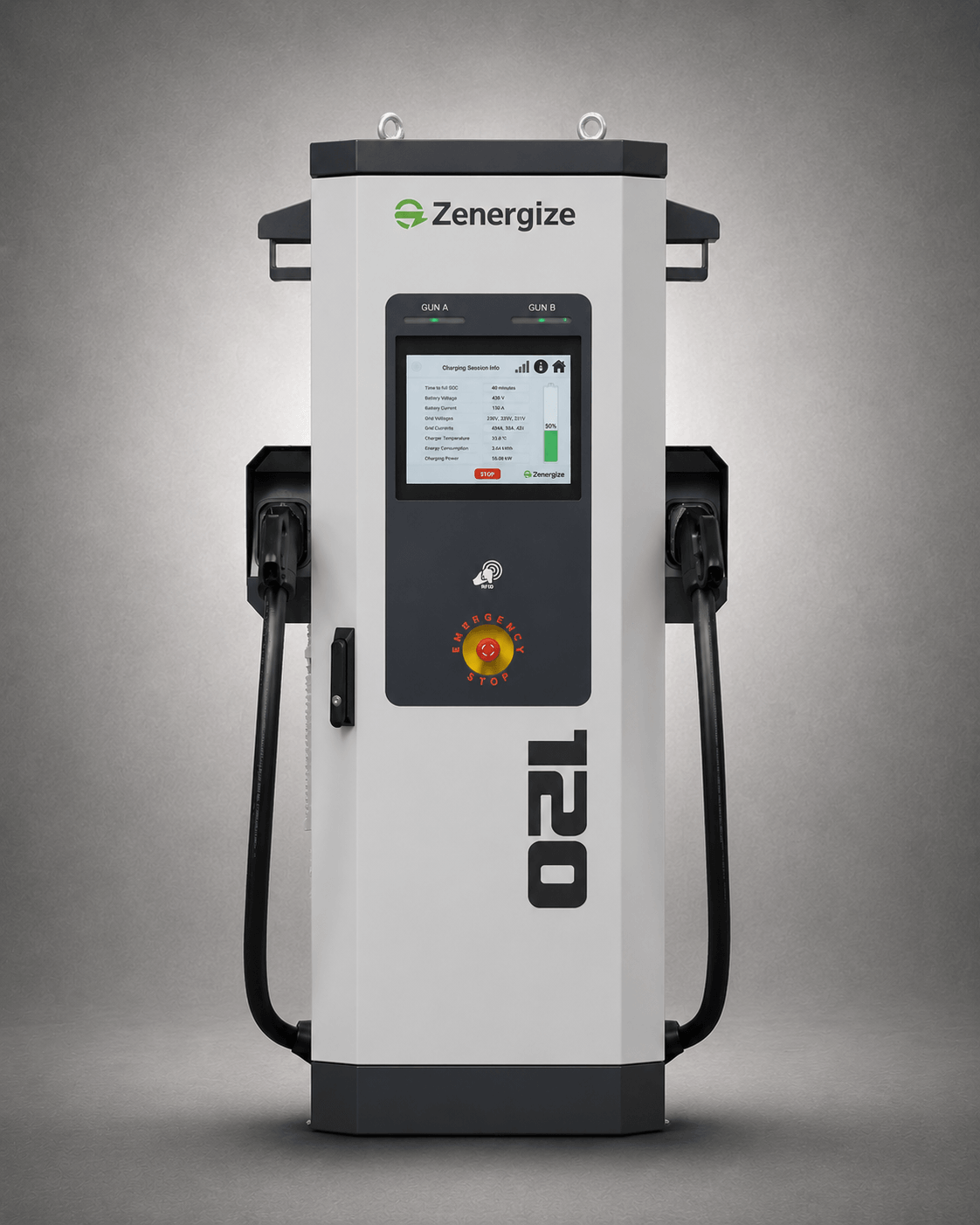

Zenergize 120kW dual gun DC fast charger

Specifications

Technical Specifications - 120 kW

Input Parameters	Input Voltage	350V – 460V
	Phase	3 Phase 5 Wire
	Frequency	47.5 – 52 Hz
	Total Harmonic Distortion	≤2%
	Power Factor	≥0.995
Power Output	Output Voltage	100 – 1000 Vdc (Ultra-Wide)
	Max Output Current	250 A
	Connector Type	CCS-2
	Number of Guns	2
	Efficiency	98%+
Protection & Safety	Over / Under Voltage	Yes
	Over Current & Short Circuit	Yes
	Surge Protection	Yes
	Over Temperature	Yes
	Ground Fault & Residual Current	Yes
	Emergency Shutdown	Yes - with alarm
Interface & Control	Display	10″ TFT HMI
	Emergency Stop	Yes
	Visual Indicators	Input supply, Error, State of Charge
	Authentication	Mobile App / QR Code / RFID / Password
	Languages Supported	English
Communication	Vehicle Protocol	DIN SPEC 70121 / ISO 15118
	Back-Office Protocol	OCPP 1.6J / 2.0.1
	Connectivity	WiFi / GSM / Ethernet
Mechanical	Protection Rating	IP55
	Cooling	Forced Air
	Cable Length	5 m
	Operating Temperature	−25 °C to 55 °C
	Storage Temperature	−25 °C to 55 °C
	Humidity	5% - 95%
	Weight	<350 kg
	Dimensions (H×W×D)	1725 × 500 × 700 mm

Why choose the 120 kW

Key Highlights

120 kW ultra-wide voltage range

100–1000 Vdc output covers all current and next-generation EV battery architectures.

250 A output

Maximum current delivery for premium EVs and fast charge sessions at high-traffic sites.

10″ TFT HMI

Clear status display with input supply, error and state-of-charge indicators.

IP55 rated

Industrial-grade enclosure sealed against dust and water - rated for outdoor highway deployment.

Also Available

30 kW Single Gun →

Compact, ideal for parking lots and residential complexes.

60 kW Dual Gun →

Dynamic power sharing, two sessions simultaneously.

240 kW Dual Gun →

India's highest power DC charger.

Monitor your charger with ZenSense → Real-time session data, anomaly alerts, and remote control from one dashboard.

Charger Types

AC vs DC: Which is right for your site?

AC Chargers - 3.3 kW to 22 kW

AC chargers use your EV's onboard charger - ideal for homes, offices and overnight fleet parking. Lower cost, simple installation.

View AC Chargers →

DC Fast Chargers - 30 kW to 240 kW

DC chargers bypass the onboard charger for rapid charging - ideal for highways, commercial hubs and anywhere fast turnaround matters.

View All DC Chargers →

FAQ

Frequently Asked Questions

What connector type does the 120 kW DC charger use?

It uses dual CCS-2 connectors, compatible with most EVs sold in India.

What current does the 120 kW charger deliver?

Up to 250 A per gun, over an ultra-wide 100-1000 Vdc output range - built for highway and fuel-station throughput.

Does the 120 kW DC charger support OCPP?

Yes, it supports OCPP 1.6J and OCPP 2.0.1 for seamless backend integration.

Can the 120 kW DC charger be installed outdoors?

Yes, it is IP55 rated for outdoor installation at highways, fuel stations and large fleet sites.

Ready to deploy 120kW charging?

Our team will assess your site, load profile and grid connection - and deliver a turnkey solution.

Talk to our team →View All Chargers
