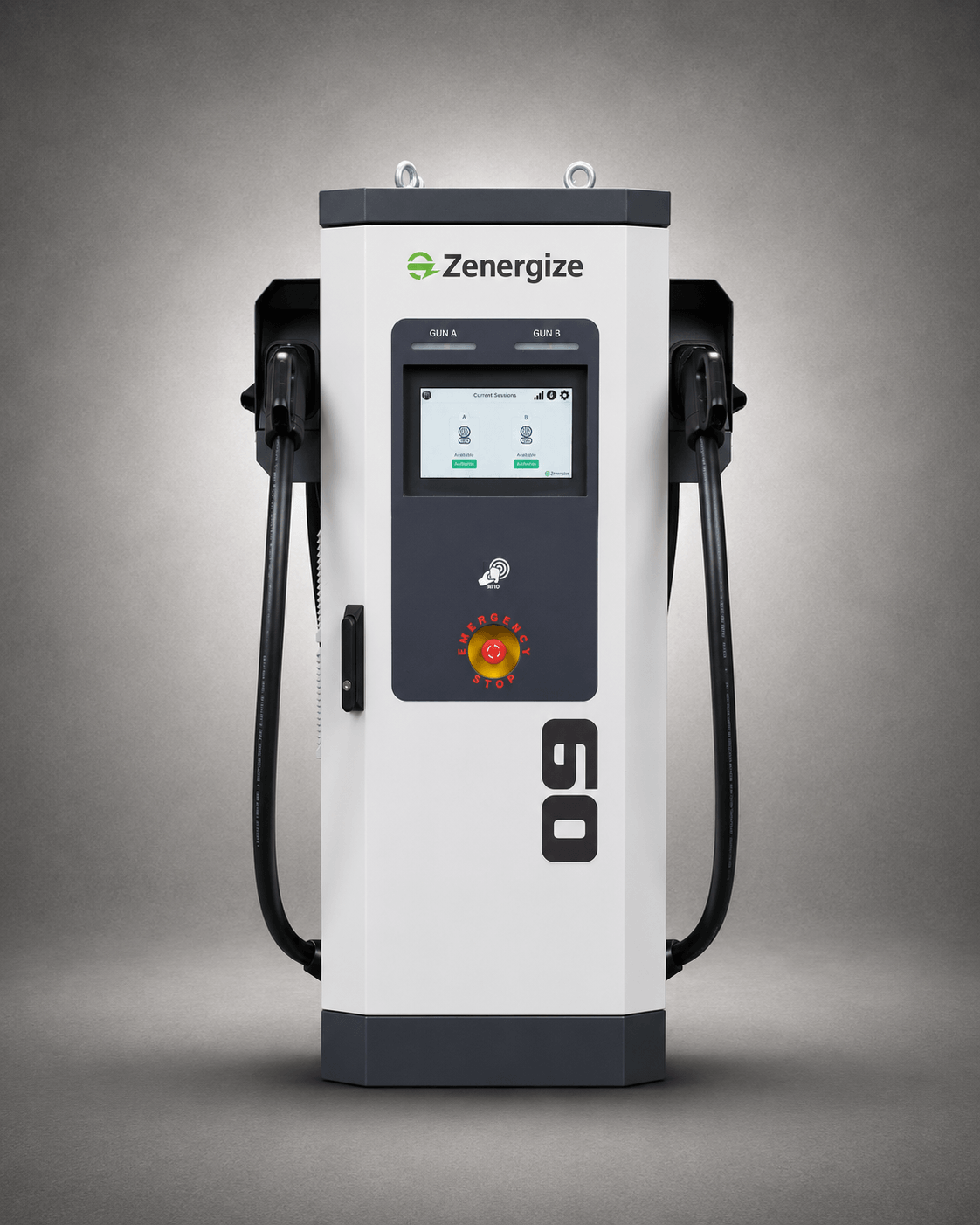

60kW Dual Gun

Perfect for fleet depots, office campuses and highway charging stops.

DC Fast Charger · 60 kW · Dual Gun

Specifications

Technical Specifications - 60 kW

Input Parameters	Input Voltage	415V
	Phase	3 Phase 5 Wire
	Frequency	47.5 – 52 Hz
	Total Harmonic Distortion	<2%
	Power Factor	>0.99
	Max Input Current	100 A rms per phase
Power Output	Output Voltage	100 – 1000 Vdc
	Max Output Current	200 A per gun
	Connector Type	CCS-2
	Number of Guns	2
	Efficiency	98%+
	Dynamic Power Sharing	Yes
Protection & Safety	Over / Under Voltage	Yes
	Over Current & Short Circuit	Yes
	Surge Protection	Yes
	Over Temperature	Yes
	Ground Fault & Residual Current	Yes
	Emergency Shutdown	Yes - with alarm
Interface & Control	Display	10″ TFT Touch Screen
	Battery Backup	30 minutes
	AC Energy Meter	Yes
	Authentication	Mobile App / QR Code / RFID / Password
	Languages Supported	English
Communication	Vehicle Protocol	IEC 61851-1, DIN SPEC 70121, ISO 15118
	Back-Office Protocol	OCPP 1.6J / 2.0.1
	Connectivity	WiFi / GSM / Ethernet
Mechanical	Protection Rating	IP55
	Cooling	Forced Air
	Cable Length	5 m (7 m optional)
	Operating Temperature	−25 °C to 75 °C
	Storage Temperature	−25 °C to 75 °C
	Humidity	5% - 95%
	Weight	220 kg
	Dimensions (H×W×D)	1350 × 850 × 749 mm
	Enclosure Material	Phosphated mild steel / Stainless Steel

Why choose the 60 kW

Two simultaneous charging sessions from a single unit - maximise throughput at any site.

Intelligently allocates power between guns based on real-time vehicle demand.

Keeps charging sessions alive during brief grid interruptions - no disruption for the driver.

Large, intuitive display for seamless user experience and clear session status at a glance.

Also Available

30 kW Single Gun →

Compact, ideal for parking lots and residential complexes.

120 kW Dual Gun →

High-throughput for highways and fuel stations.

240 kW Dual Gun →

India's highest power DC charger.

Monitor your charger with ZenSense → Real-time session data, anomaly alerts, and remote control from one dashboard.

Charger Types

AC Chargers - 3.3 kW to 22 kW

AC chargers use your EV's onboard charger - ideal for homes, offices and overnight fleet parking. Lower cost, simple installation.

DC Fast Chargers - 30 kW to 240 kW

DC chargers bypass the onboard charger for rapid charging - ideal for highways, commercial hubs and anywhere fast turnaround matters.

FAQ

What connector type does the 60 kW DC charger use?

It uses dual CCS-2 connectors, compatible with most EVs sold in India.

Can both guns on the 60 kW charger run at full power at once?

The 60 kW charger uses dynamic power sharing across its two guns, splitting available output between both vehicles charging simultaneously.

Does the 60 kW DC charger support OCPP?

Yes, it supports OCPP 1.6J and OCPP 2.0.1 for seamless backend integration.

Can the 60 kW DC charger be installed outdoors?

Yes, it is IP55 rated for outdoor installation - suited to office campuses and fleet depots.

Our team will assess your site, load profile and grid connection - and deliver a turnkey solution.
