30kW Single Gun

Q: What connector type does the 30 kW DC charger use?

It uses a single CCS-2 connector, compatible with most EVs sold in India.

Q: How many vehicles can the 30 kW charger serve at once?

The 30 kW is a single gun charger, so it charges one vehicle at a time - ideal for parking lots and residential complexes rather than high-throughput sites.

Q: Does the 30 kW DC charger support OCPP?

Yes, it supports OCPP 1.6J and OCPP 2.0.1 for seamless backend integration.

Q: Can the 30 kW DC charger be installed outdoors?

Yes, it is IP55 rated for outdoor installation.

Ideal for parking lots, residential complexes and light commercial use.

DC Fast Charger · 30 kW · Single Gun

Request a Quote Download Brochure →

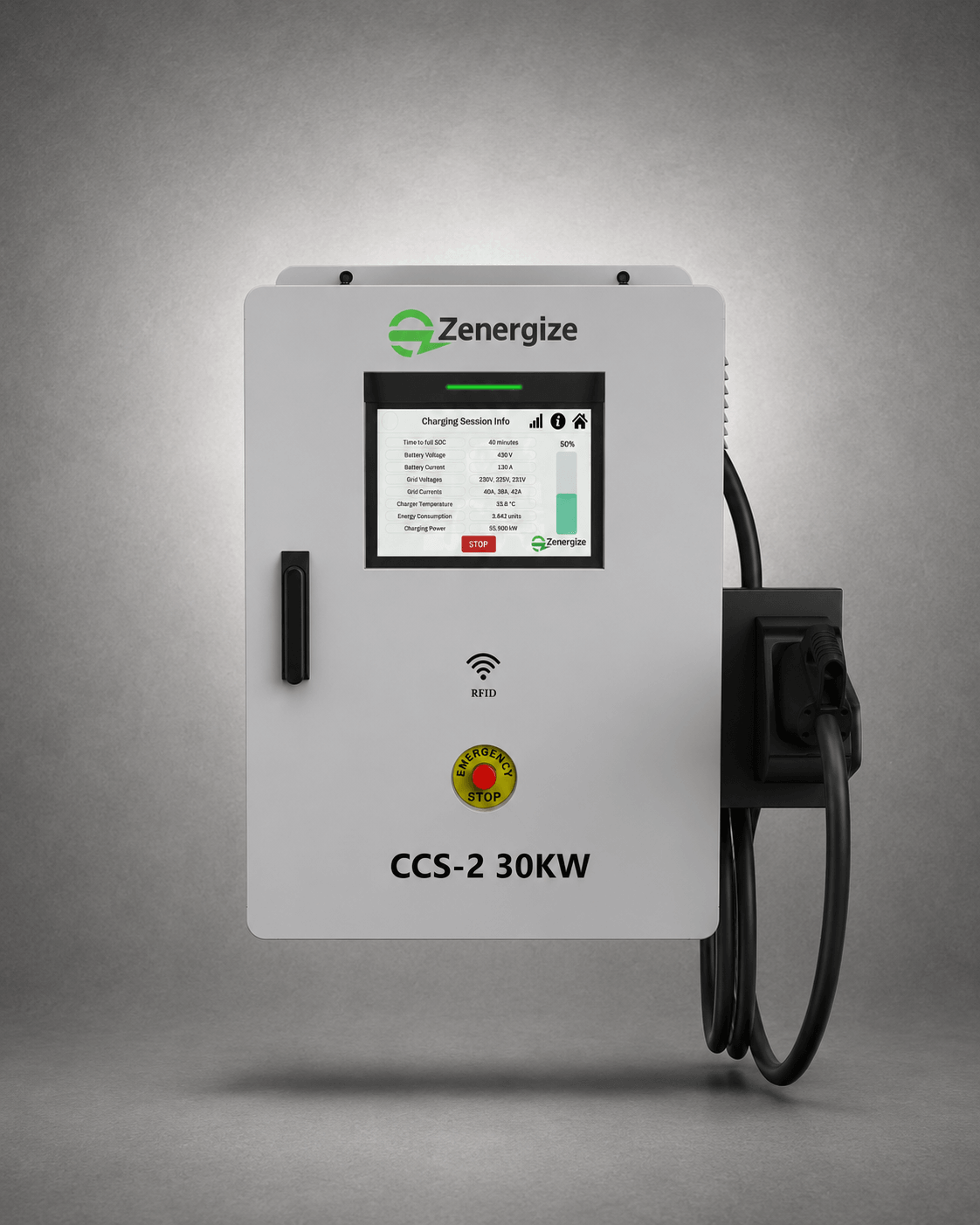

Zenergize CCS-2 30kW single gun DC fast charger

Specifications

Technical Specifications - 30 kW

Input Parameters	Input Voltage	350V – 460V
	Phase	3 Phase 5 Wire
	Frequency	47.5 – 52 Hz
	Total Harmonic Distortion	≤2%
	Power Factor	≥0.995
Power Output	Output Voltage	100 – 500 Vdc
	Max Output Current	80 A
	Connector Type	CCS-2
	Number of Guns	1
	Efficiency	98%+
Protection & Safety	Over / Under Voltage	Yes
	Over Current & Short Circuit	Yes
	Surge Protection	Yes
	Over Temperature	Yes
	Ground Fault & Residual Current	Yes
	Emergency Shutdown	Yes - with alarm
Interface & Control	Display	10″ TFT Touch Screen
	Emergency Stop	Yes
	Authentication	Mobile App / QR Code / RFID / Password
	Languages Supported	English
	Visual Indication	Presence of Input Supply, Error Indicator, State of Charge
Communication	Vehicle Protocol	DIN SPEC 70121 / ISO 15118
	Back-Office Protocol	OCPP 1.6J / 2.0.1
	Connectivity	WiFi / GSM / Ethernet
Mechanical	Protection Rating	IP55
	Cooling	Forced Air
	Cable Length	5 m
	Operating Temperature	−25 °C to 55 °C
	Storage Temperature	−25 °C to 55 °C
	Humidity	5% - 95%
	Weight	<160 kg
	Dimensions (H×W×D)	1250 × 864 × 590 mm

Why choose the 30 kW

Key Highlights

30 kW single gun simplicity

Compact footprint, easy installation - ideal for sites that need one dedicated charging point.

98%+ efficiency

SiC MOSFET power stages deliver sustained output without thermal throttling, even at full load.

OCPP 2.0.1 ready

Open protocol - plug into any CMS back-office or use ZenSense for real-time fleet management.

IP55 rated

Sealed against dust and water jets. Built for Indian monsoons, heat and outdoor environments.

Also Available

60 kW Dual Gun →

Dynamic power sharing, two sessions simultaneously.

120 kW Dual Gun →

High-throughput for highways and fuel stations.

240 kW Dual Gun →

India's highest power DC charger.

Monitor your charger with ZenSense → Real-time session data, anomaly alerts, and remote control from one dashboard.

Charger Types

AC vs DC: Which is right for your site?

AC Chargers - 3.3 kW to 22 kW

AC chargers use your EV's onboard charger - ideal for homes, offices and overnight fleet parking. Lower cost, simple installation.

View AC Chargers →

DC Fast Chargers - 30 kW to 240 kW

DC chargers bypass the onboard charger for rapid charging - ideal for highways, commercial hubs and anywhere fast turnaround matters.

View All DC Chargers →

FAQ

Frequently Asked Questions

What connector type does the 30 kW DC charger use?

It uses a single CCS-2 connector, compatible with most EVs sold in India.

How many vehicles can the 30 kW charger serve at once?

The 30 kW is a single gun charger, so it charges one vehicle at a time - ideal for parking lots and residential complexes rather than high-throughput sites.

Does the 30 kW DC charger support OCPP?

Yes, it supports OCPP 1.6J and OCPP 2.0.1 for seamless backend integration.

Can the 30 kW DC charger be installed outdoors?

Yes, it is IP55 rated for outdoor installation.

Ready to deploy 30kW charging?

Our team will assess your site, load profile and grid connection - and deliver a turnkey solution.

Talk to our team →View All Chargers
