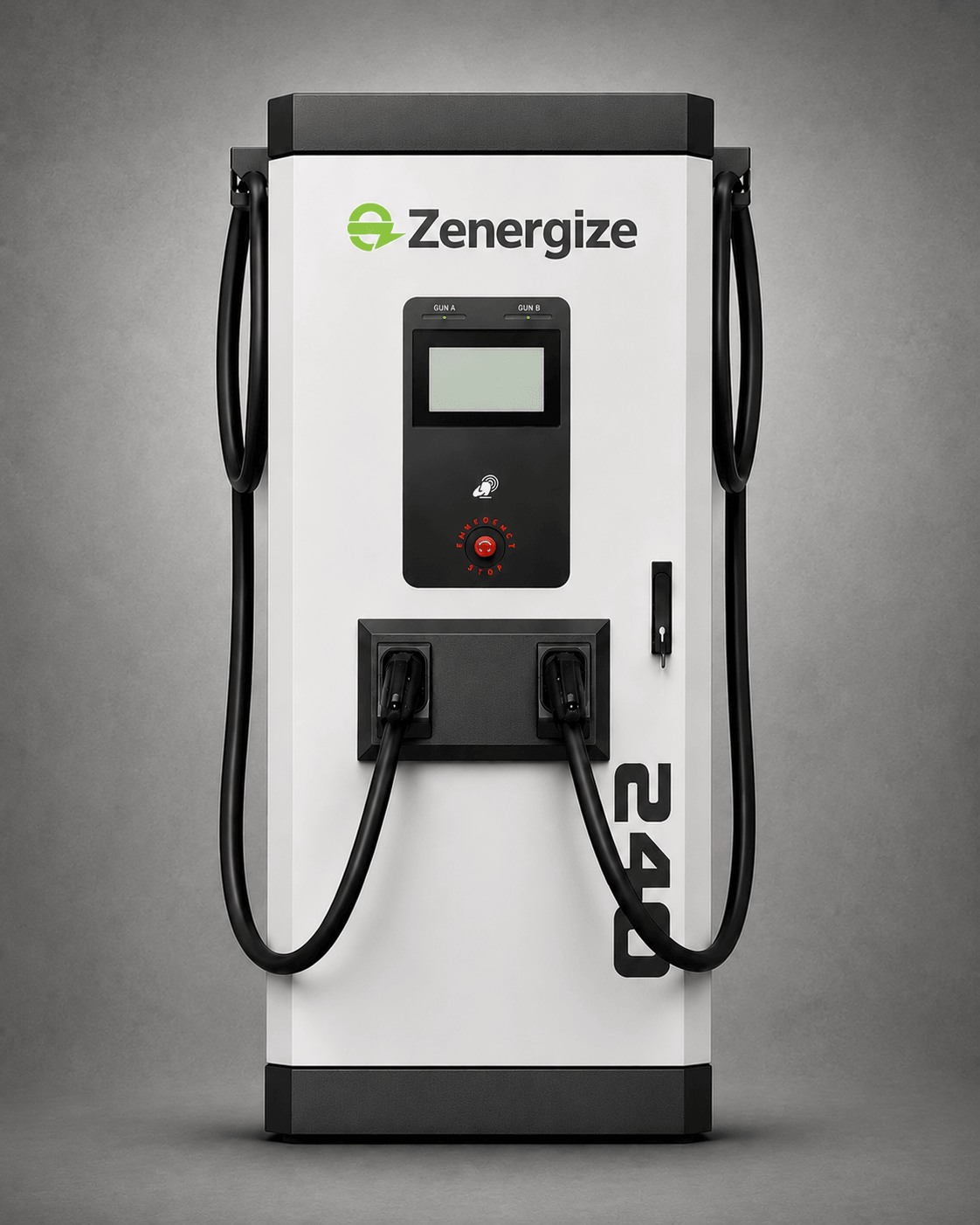

240kW Dual Gun
India's highest power DC fast charger - engineered for premium EVs, heavy-duty fleets and highway superhubs.
DC Fast Charger · 240 kW · Dual Gun
Specifications
Technical Specifications - 240 kW
| Input Parameters | |
| Input Voltage | 415V Three Phase |
| Phase | 3 Phase 5 Wire |
| Frequency | 47.5 – 52 Hz |
| Total Harmonic Distortion | <2% at rated load |
| Power Factor | >0.99 (at rated load) |
| Maximum Input Current | 400 A rms per phase |
| Power Output | |
| Output Voltage | 100 – 1000 Vdc (Ultra-Wide) |
| Max Output Current | 250 A per gun |
| Connector Type | CCS-2 |
| Number of Guns | 2 |
| Efficiency | >95.5% |
| Dynamic Power Sharing | No |
| Protection & Safety | |
| Over / Under Voltage | Yes |
| Over Current & Short Circuit | Yes |
| Surge Protection | Yes |
| Over Temperature | Yes |
| Ground Fault & Residual Current | Yes |
| Emergency Shutdown | Yes - with alarm |
| Interface & Control | |
| Display | 10″ TFT Touch Screen |
| Emergency Stop | Yes |
| Authentication | Mobile App / QR Code / RFID / Password |
| AC Energy Meter | Yes |
| Battery Backup | 30 minutes |
| Languages Supported | English |
| Communication | |
| Vehicle Protocol | DIN SPEC 70121 / ISO 15118 |
| Back-Office Protocol | OCPP 1.6J / 2.0.1 |
| Connectivity | WiFi / GSM / Ethernet |
| Mechanical | |
| Protection Rating | IP55 |
| Cooling | Forced Air |
| Cable Length | 5 m (optional up to 7 m) |
| Operating Temperature | −25 °C to 75 °C (de-rating >55 °C) |
| Storage Temperature | −25 °C to 75 °C |
| Humidity | 5% - 95% |
| Weight | 500 kg (with power module) |
| Dimensions (H×W×D) | 1975 × 1090 × 750 mm |
Why choose the 240 kW
Key Highlights
240 kW peak power
India's most powerful DC fast charger - charges a premium EV from 10% to 80% in under 20 minutes.
Indigenously designed
Power modules, control boards and enclosures - all designed and manufactured in-house at our facilities.
100% in-house stack
Complete hardware and software stack built by Zenergize engineers. No dependency on imported sub-assemblies.
First Indian OEM
First Indian OEM to design, manufacture and service a complete DC fast charger stack end-to-end.
Also Available
30 kW Single Gun →
Compact, ideal for parking lots and residential complexes.
60 kW Dual Gun →
Dynamic power sharing, two sessions simultaneously.
120 kW Dual Gun →
High-throughput for highways and fuel stations.
Monitor your charger with ZenSense → Real-time session data, anomaly alerts, and remote control from one dashboard.
Charger Types
AC vs DC: Which is right for your site?
AC Chargers - 3.3 kW to 22 kW
AC chargers use your EV's onboard charger - ideal for homes, offices and overnight fleet parking. Lower cost, simple installation.
View AC Chargers →DC Fast Chargers - 30 kW to 240 kW
DC chargers bypass the onboard charger for rapid charging - ideal for highways, commercial hubs and anywhere fast turnaround matters.
View All DC Chargers →FAQ
Frequently Asked Questions
What connector type does the 240 kW DC charger use?
Is the 240 kW charger India's highest-power DC charger?
Does the 240 kW DC charger support OCPP?
Can the 240 kW DC charger be installed outdoors?
Ready to deploy 240kW charging?
Our team will assess your site, load profile and grid connection - and design the right superhub solution.
